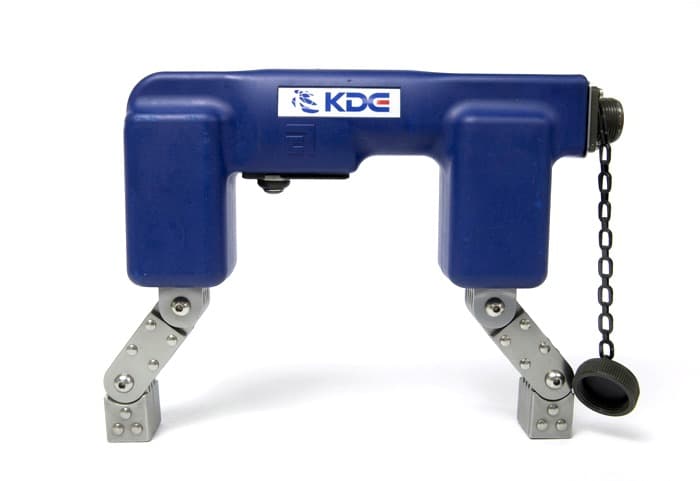

KDE Handy Magna MP-A2 Electromagnetic Yoke
AC electromagnetic yoke for magnetic particle inspection, weighing 2.3kg and lifting 5.45kg or more. 220V AC, supplied complete with power lead. A built-in work light (white or UV/black) and a hard carry case are available as options.
Select model
Specifications
| Specification | Value |
|---|---|
| Power | 220V AC, 2.5A |
| Weight | 2.3kg |
| Dimensions (L×W×H) | 230 × 45 × 182mm |
| Lifting Power | 5.45kg (12lb) or more |
| Pole Spacing | 75–210mm |
| Cable Length | 4.5m |
| Duty Cycle | 2 sec ON, 2 sec OFF |
