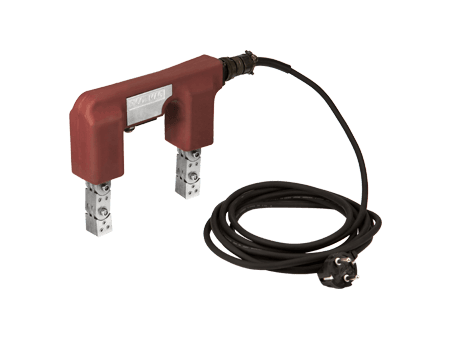

Nawoo MY-2 AC Electromagnetic Yoke
The Nawoo MY-2 is a standard AC electromagnetic yoke for magnetic particle inspection. It is small and light, making it easy to carry around and work with for long periods of time.
Its compact body can get into positions that are hard to reach, and the build is durable for regular use on site. It can be used with the dry, wet and fluorescent particle methods. The pole spacing adjusts from 25 to 190 mm, and the yoke lifts ≥ 4.5 kg at both the centre and the maximum pole spacing.
Key features
- AC yoke producing a strong magnetic field
- Compact and lightweight, 2.2 kg standard
- Pole spacing 25–190 mm
- Lifts ≥ 4.5 kg at both centre and maximum spacing
- Durable construction; reaches hard-to-access positions
- Suitable for dry, wet and fluorescent methods
Specifications
| Specification | Value |
|---|---|
| Power | AC 220V / 60Hz |
| Power consumption | 2.6A |
| Pole spacing | 25–190mm (135mm at centre) |
| Weight | 2.20kg |
| Lifting power | ≥ 4.5kg at 135mm and at 190mm |
| Cable length | 4m |
| Magnetisation | AC only |
