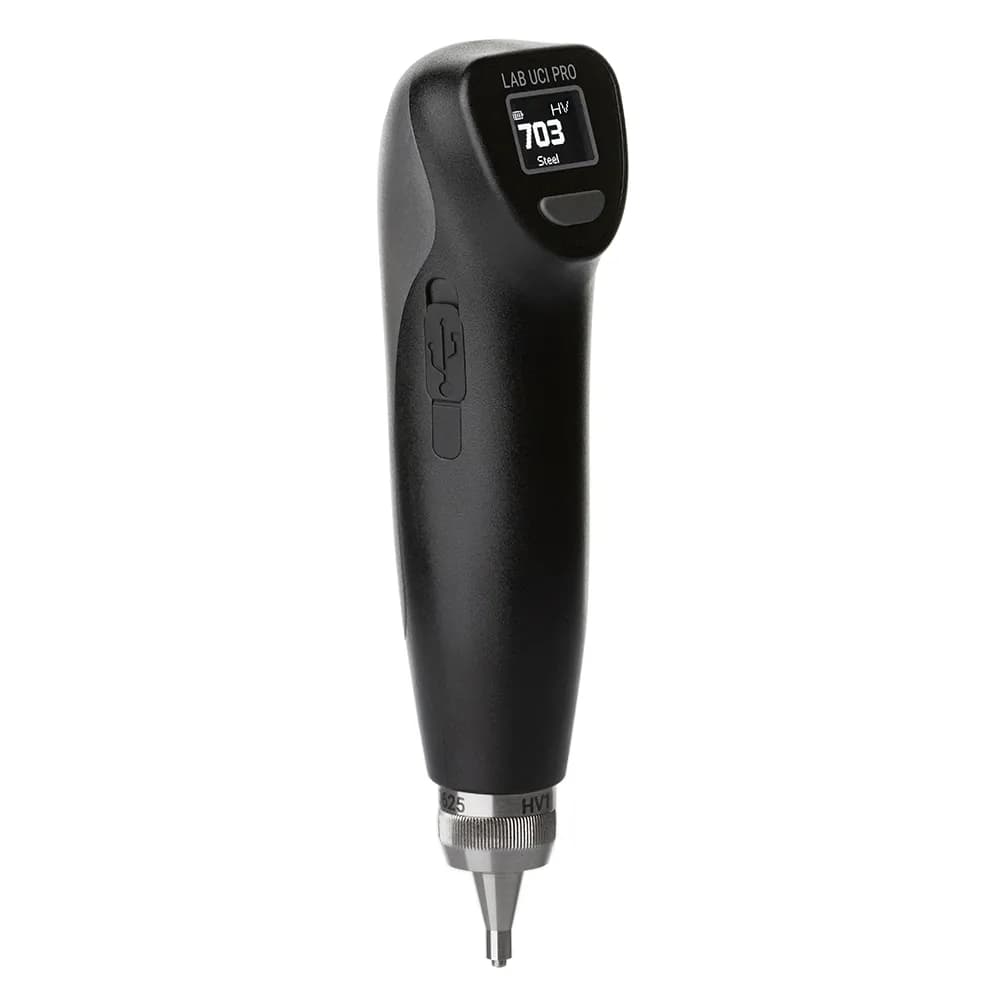

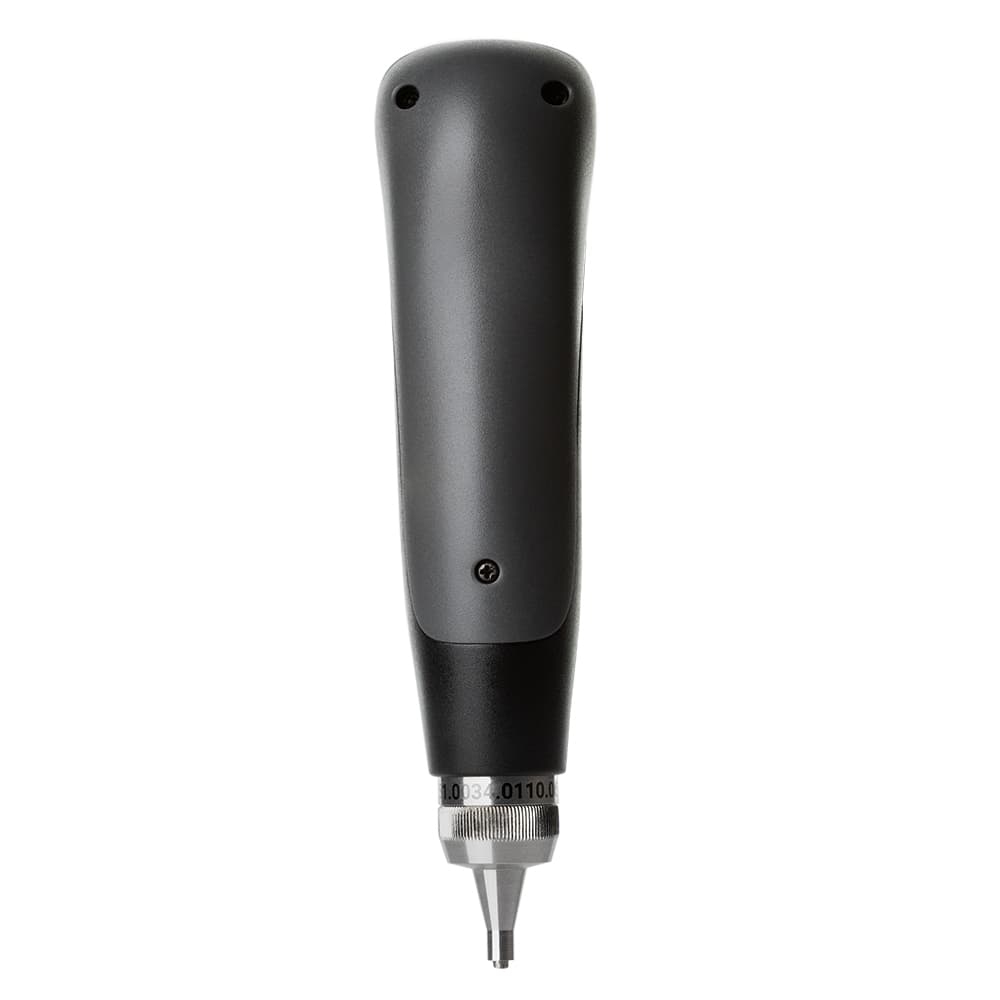

NOVOTEST Lab UCI Pro Wireless Hardness Tester
The NOVOTEST Lab UCI Pro is a next-generation portable hardness tester that uses Ultrasonic Contact Impedance (UCI) technology. It works as a fully standalone instrument, with its own display and controls, and connecting it to a smartphone or tablet through the NOVOTEST Lab app adds advanced calibration, data analysis, reporting and cloud synchronisation.
At around 160 g with up to 24 hours of battery life, it is easy to carry and use all day. UCI testing leaves only a micron-scale indentation, so it can measure components of almost any size and shape, from large structures down to parts weighing a few grams and plates around 1 mm thick, and it suits coatings and surface-hardened layers where other methods are not suitable.

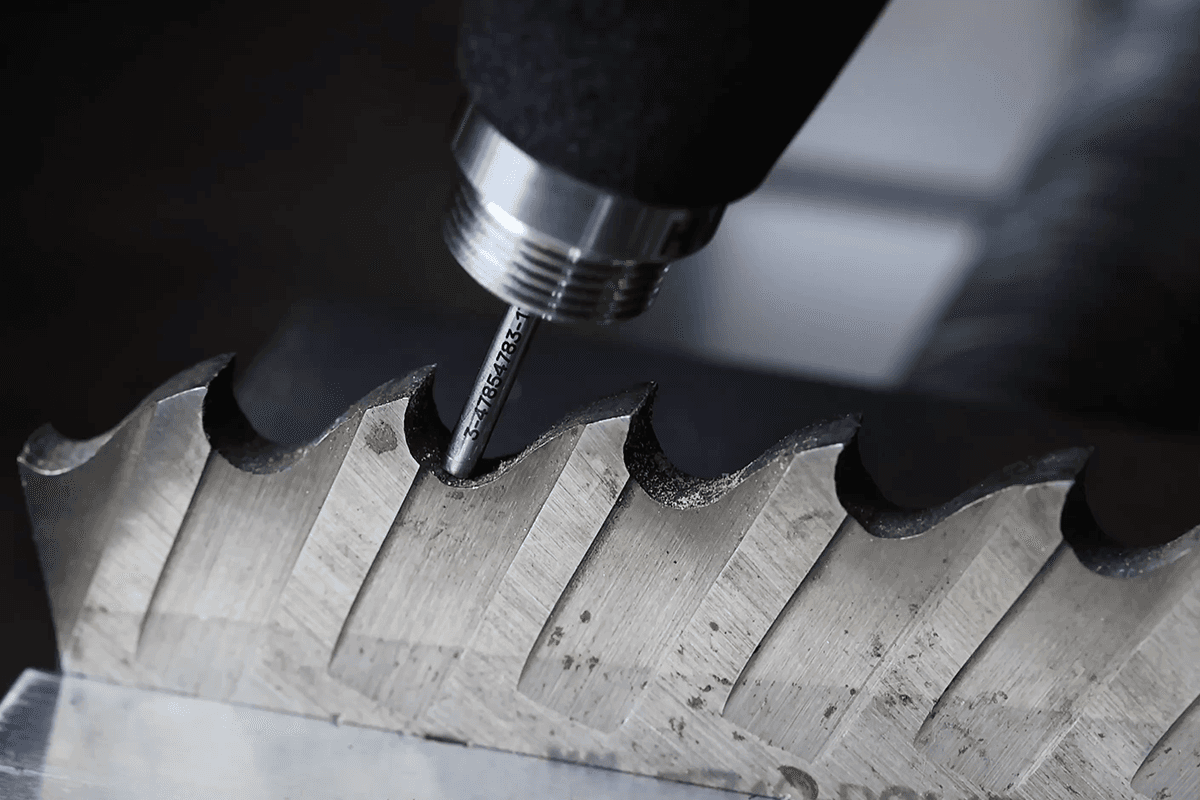

The tester is factory-calibrated for HV, HRC, HRB, HRA, HB, HK and MPa scales, with hardness conversions built in to ASTM E140 and ISO 18265, and is pre-configured for eight materials: steel, alloy steel, stainless steel, cast iron, nickel, aluminium, brass and copper. You can also create your own materials and calibrate them without reference blocks. A removable protective indenter cap lets you reach grooves, gear teeth, internal hole surfaces and recesses up to 20 mm deep.
WORKS WITH THE NOVOTEST LAB APP

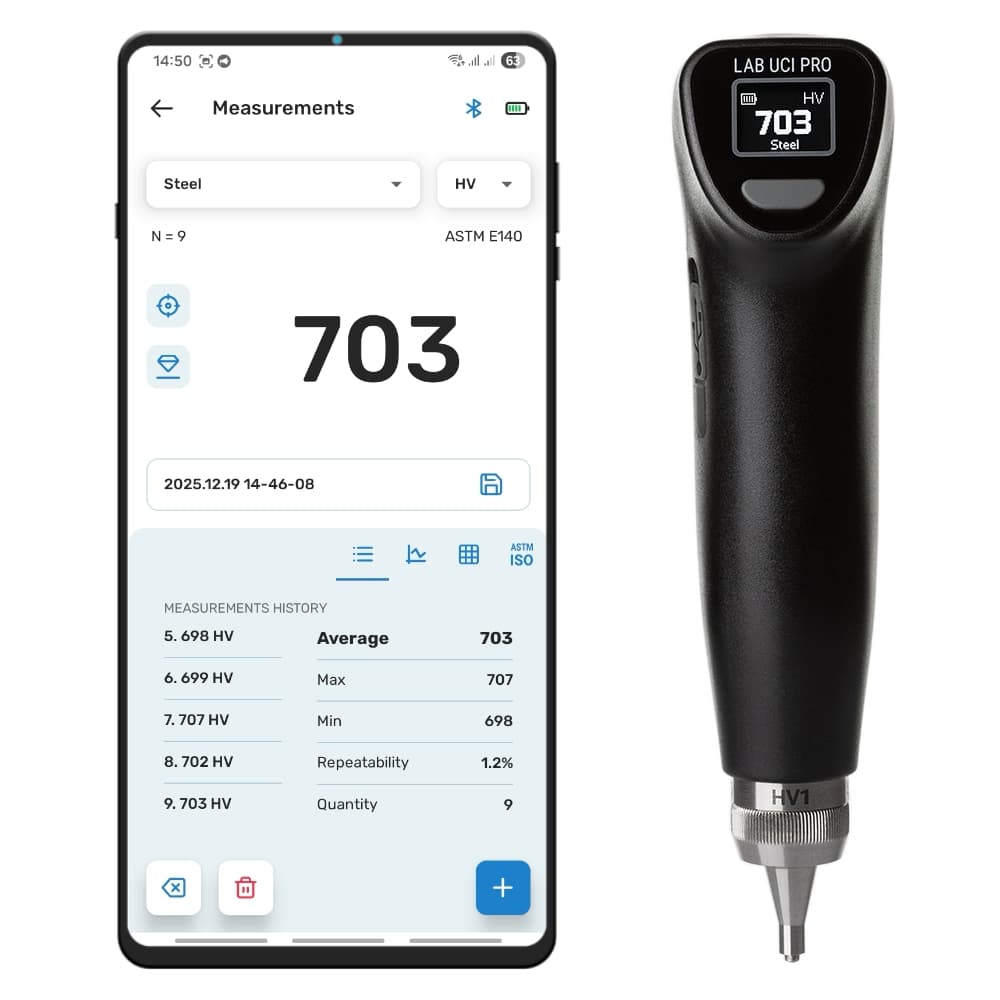

Pair this tester with the free NOVOTEST Lab app on your phone or tablet for calibration, data analysis, reporting and cloud sync. Learn more →
Key features
- Works standalone with a high-contrast 0.66" display; no smartphone or tablet needed for measuring
- Approx. 160 g, up to 24 hours battery life, USB-C charging
- Measures parts from a few grams and thin plates around 1 mm
- Factory-calibrated for HV, HRC, HRB, HRA, HB, HK and MPa
- Pre-configured for 8 materials, plus custom material creation without reference blocks
- Removable indenter cap for hard-to-reach areas (up to 20 mm deep recesses)
- Bluetooth BLE link to the NOVOTEST Lab app for calibration, reporting and cloud sync
Test load
Specifications
| Specification | Value |
|---|---|
| Hardness scales | HV, HB, HRC, HRB, HRA, HK, MPa |
| Pre-configured materials | Steel, alloy steel, stainless steel, cast iron, nickel, aluminium, brass, copper |
| Measurement range | 0–2000 HV |
| Measurement uncertainty | 4% |
| Test load options | HV1 (9.8 N), HV5 (49 N), HV10 (100 N) |
| Display | 0.66 inch (64×48 pixels) |
| Connectivity | USB-C (charging / PC), Bluetooth BLE (app) |
| Battery | Built-in Li-ion, 3.7 V / 750 mAh, up to 24 hours |
| Dimensions | 153 × 40 mm |
| Weight | 160 g |
| Operating temperature | -20°C to +50°C |
| Standards | ASTM A1038, DIN 50159, ASTM E140, ISO 18265 |
What's in the box
| Item | Qty |
|---|---|
| NOVOTEST Lab UCI Pro hardness tester | 1 |
| USB Type-C cable | 1 |
| Charger | 1 |
| Protective carrying case | 1 |
| User manual | 1 |
| NOVOTEST Lab quick guide | 1 |
Special fixtures and stands, grinding tools, and extended calibrations for non-standard materials are also available — tell us what you need in the notes.
