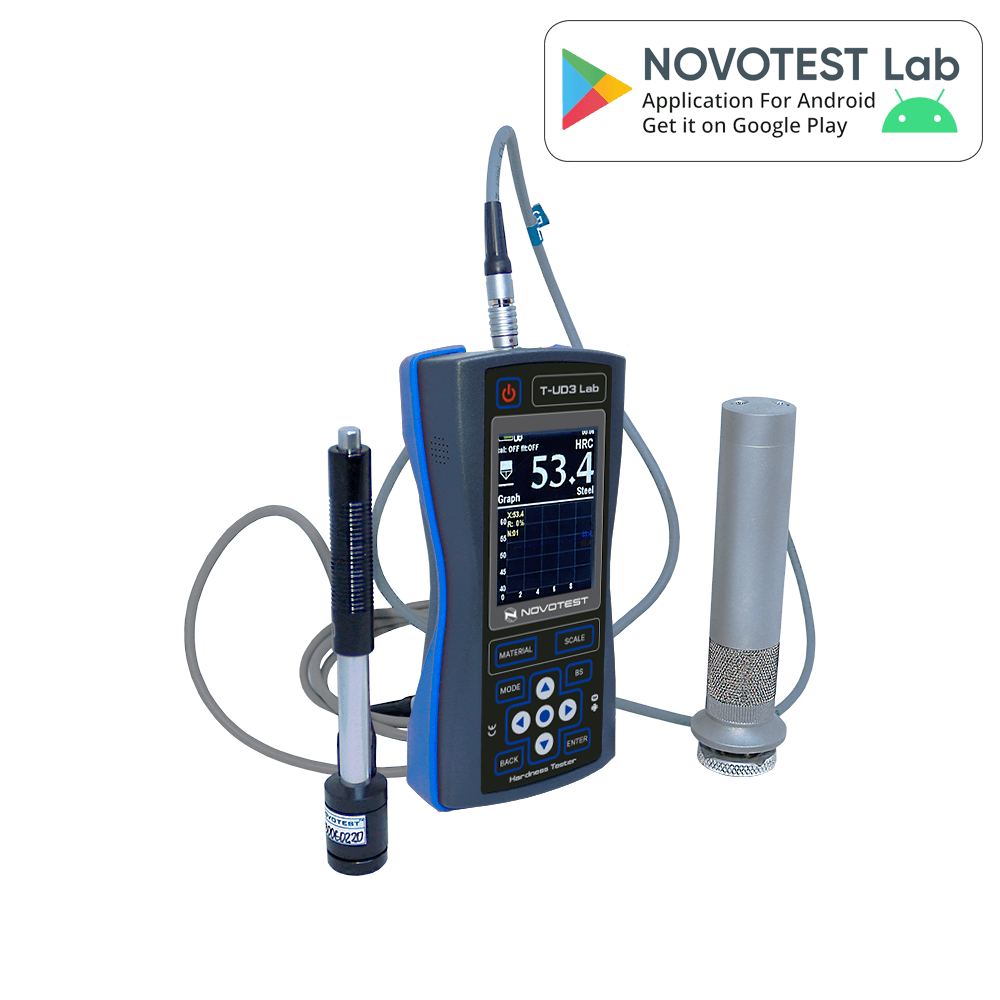

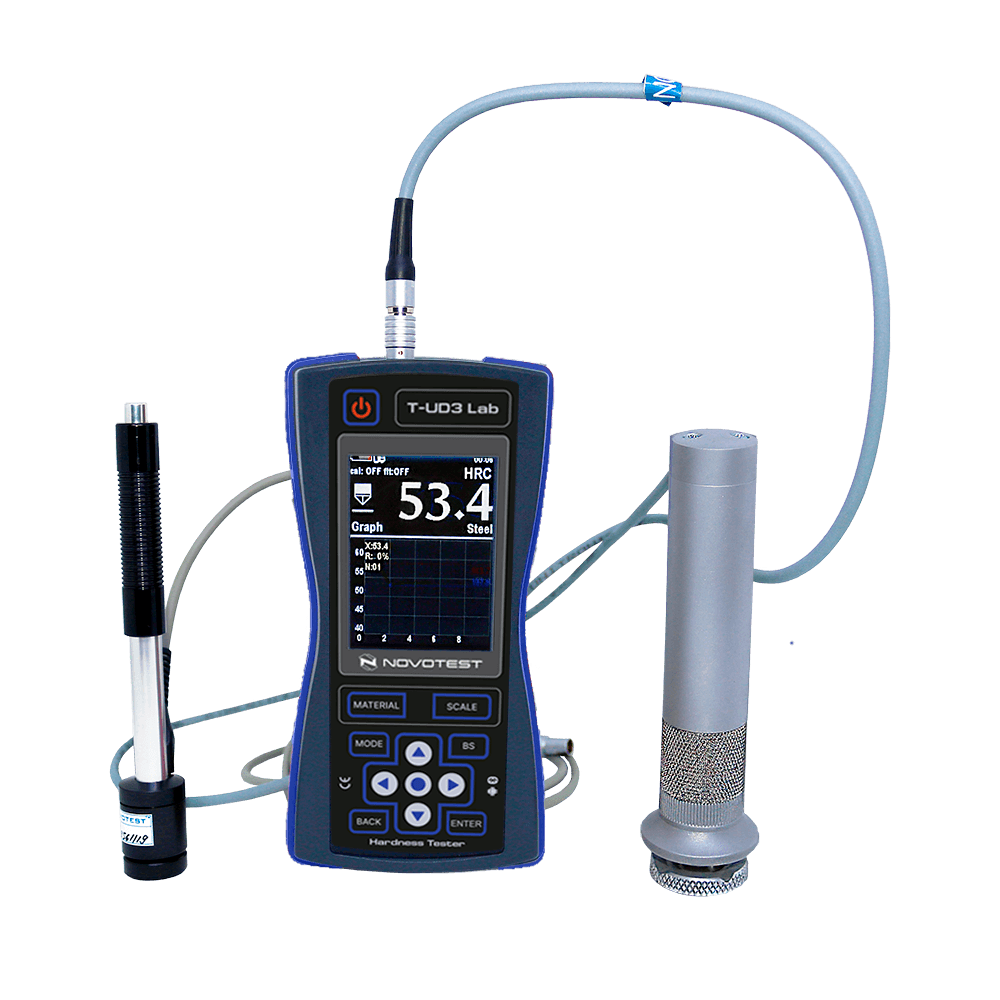

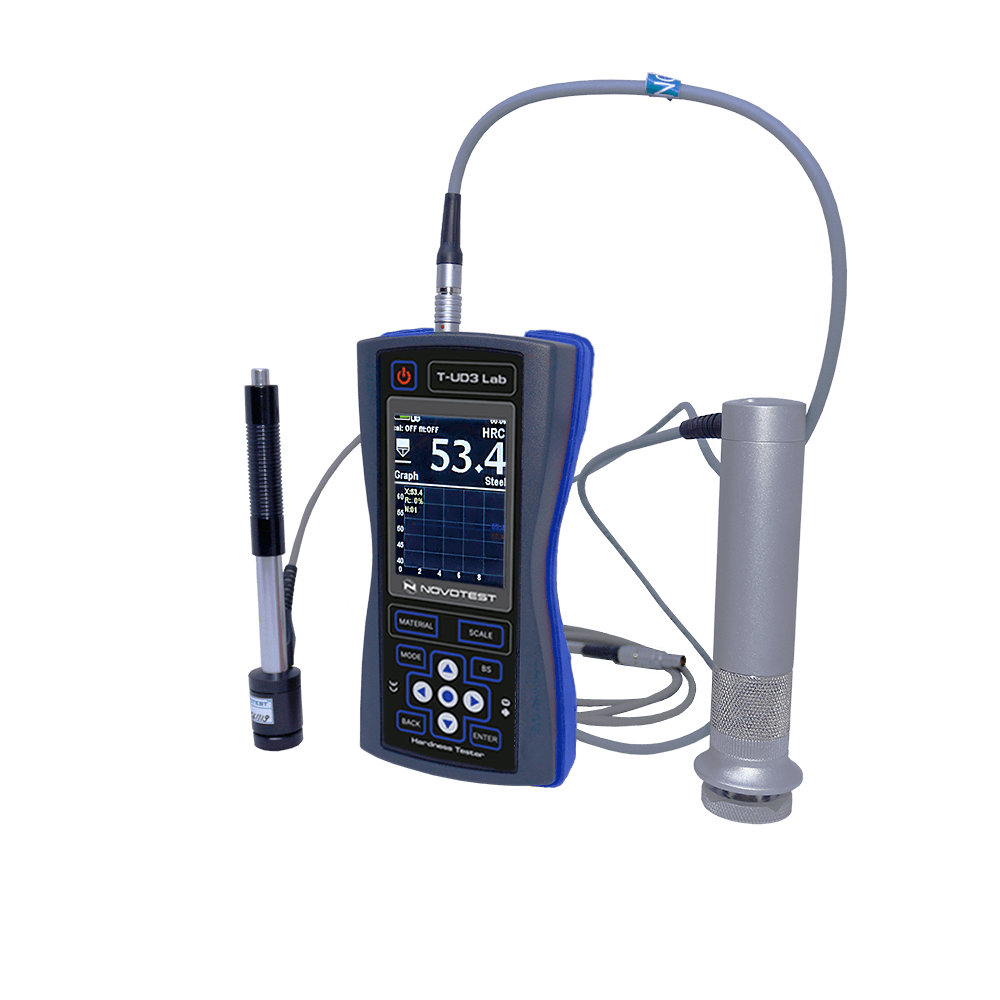

NOVOTEST T-UD3 Combined Hardness Tester (UCI + Leeb)
The NOVOTEST T-UD3 combines two hardness testing methods in one instrument: Ultrasonic Contact Impedance (UCI, to ASTM A1038) and Leeb rebound (to ASTM A956). You can change probe types without switching the unit off, and it recognises the connected probe automatically, so one tester covers metal products of many shapes, structures and surface conditions.
The UCI probes can test small parts from 100 g and 1 mm thick, complex shapes such as grooves and curved surfaces, hardened layers produced by nitriding or cementation, and products with poorly prepared surfaces, mirror-finish shafts, blades and gear teeth. Thin sheet can be tested with the optional UCI probe test stand. The Leeb probes cover heavier and larger components, and the tester works with D, DC, DL, C, G, D+15 and E type probes.

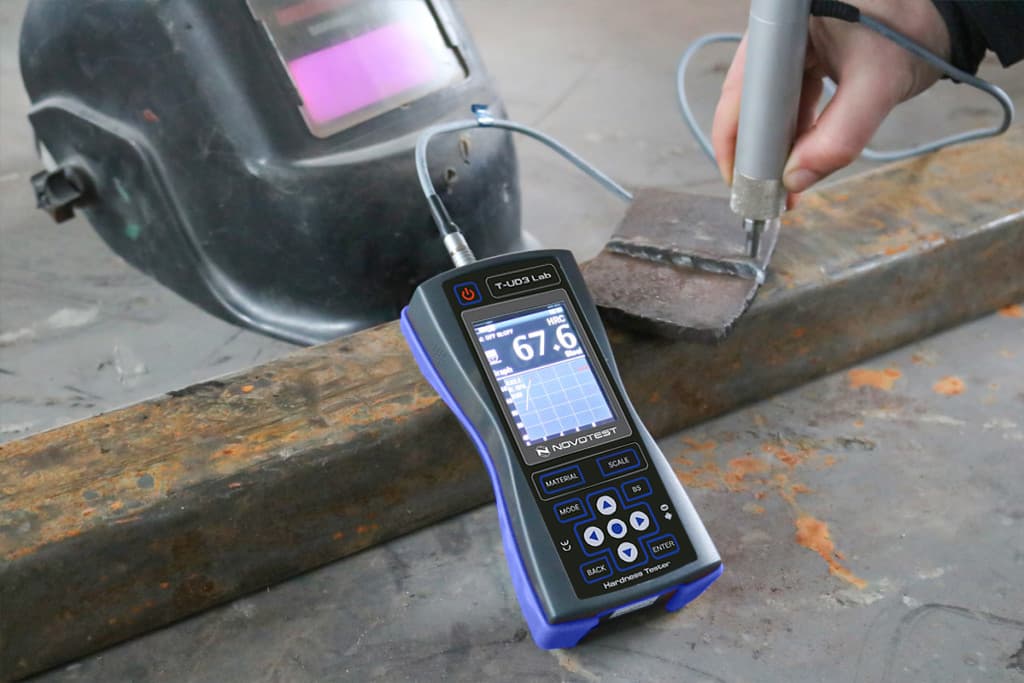

A full-colour 320×240 display, 360° measurement direction, 88 combinations of materials and hardness scales and a built-in colour camera for documenting measurements make it a practical field instrument, in a waterproofed housing with rubber bumpers. The optional NOVOTEST Lab app adds Bluetooth data viewing, geolocation tagging, report generation, cloud sync and wireless printing.
WORKS WITH THE NOVOTEST LAB APP
Connect this tester to your phone or tablet over Bluetooth to calibrate, record results with photos and GPS, and build reports. Learn more →
Key features
- Two methods in one: UCI (ASTM A1038) and Leeb (ASTM A956)
- Automatic probe recognition, no restart when changing probes
- 88 combinations of materials and hardness scales
- 360° measurement direction
- Built-in colour camera for documentation
- Full-colour 320×240 display; waterproofed rubber-bumper housing
- microSD storage up to 32 GB; USB and Bluetooth (NOVOTEST Lab app)
- 3-year warranty (1+2)
UCI probe
Specifications
| Specification | Value |
|---|---|
| UCI probe loads | 1 kgf (10 N), 5 kgf (50 N), 10 kgf (98 N) |
| Leeb probe types | D, DC, DL, C, G, D+15, E |
| Hardness scales | HRC (20–70), HB (90–650), HV (230–940), HL, HRB, MPa (370–1740) |
| Accuracy | ±2 HRC, ±10 HB, ±15 HV |
| Indenters | UCI: diamond; Leeb: hardened ball |
| Data storage | microSD card up to 32 GB |
| Display | Colour LCD, 320×240 pixels |
| Operating temperature | -20°C to +40°C |
| Power | 3 × AA batteries (about 10 hours) |
| Dimensions | 160 × 75 × 30 mm |
| Weight | About 0.3 kg (device only) |
| Communication | USB (PC), Bluetooth (NOVOTEST Lab app) |
| Languages | English, German, French, Polish, Russian (others on request) |
| Warranty | 3 years (1+2) |
| Standards | ASTM A1038, ASTM A956 |
What's in the box
| Item (Basic kit) | Qty |
|---|---|
| Electronic unit T-UD3 | 1 |
| UCI probe (10 N / 50 N / 98 N, your choice) | 1 |
| Leeb D-type probe | 1 |
| AA batteries | 3 |
| USB charger | 1 |
| USB data cable | 1 |
| PC software and NOVOTEST LAB app | 1 |
| Operating manual / quick start guide | 1 |
| Test certificate | 1 |
| Transportation plastic case | 1 |
Advanced, Professional and Expert kits (extra probes, test blocks, support rings, test stand), an Android device, a portable grinding machine and a wireless printer are also available — tell us what you need in the notes.
