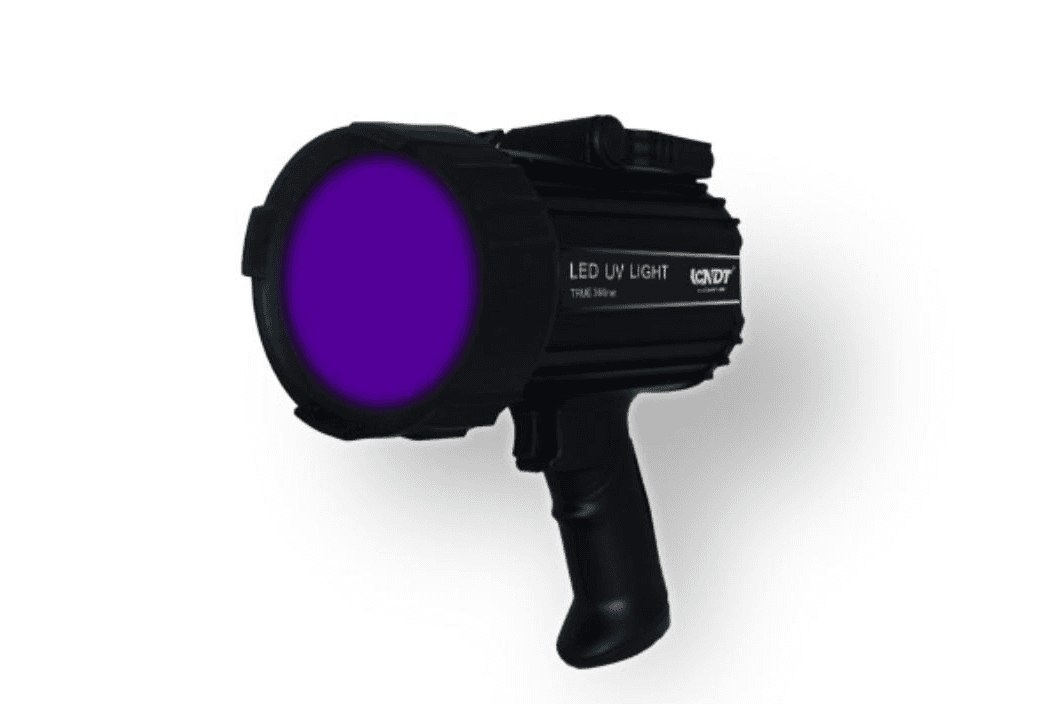

LCNDT LED UV Inspection Lamp
Handheld 365nm UV-A LED lamp for fluorescent magnetic particle and dye penetrant inspection, with no warm-up time. Available as the standard AC-powered UV-100, the cordless battery-powered UV-100B, or the high-intensity dual UV/white LED UV-200. All meet ASTM UV-A intensity and wavelength requirements for FPI and MPI.
Select model
Specifications
| Specification | UV-100 | UV-100B | UV-200 |
|---|---|---|---|
| Wavelength | 365nm ± 5nm | 365nm | 365nm ± 5nm |
| UV Intensity | >8,200µW/cm² @15in | 5,000µW/cm² @15in | >20,000µW/cm² @15in |
| Coverage Area | 160mm @15in | 160mm @15in | 195mm @15in |
| Weight | 0.7kg | 0.9kg | 0.7kg |
| Power Source | 115-240V AC | Built-in battery (6hr) | 115-240V AC |
| Cord / Charger | 2.5m cord | 1.2m charger cable | 2.5m cord |
| Visible Light Output | <2 foot-candles | <2 foot-candles (22 lux) | <2 foot-candles |
| Extra Feature | — | — | Dual UV + white LED |
What's in the box
| Item | Qty |
|---|---|
| UV Lamp | 1 |
| UV-Absorbing Spectacles | 1 |
| Power Supply/Charger & Cord | 1 |
| Carrying Bag | 1 |
