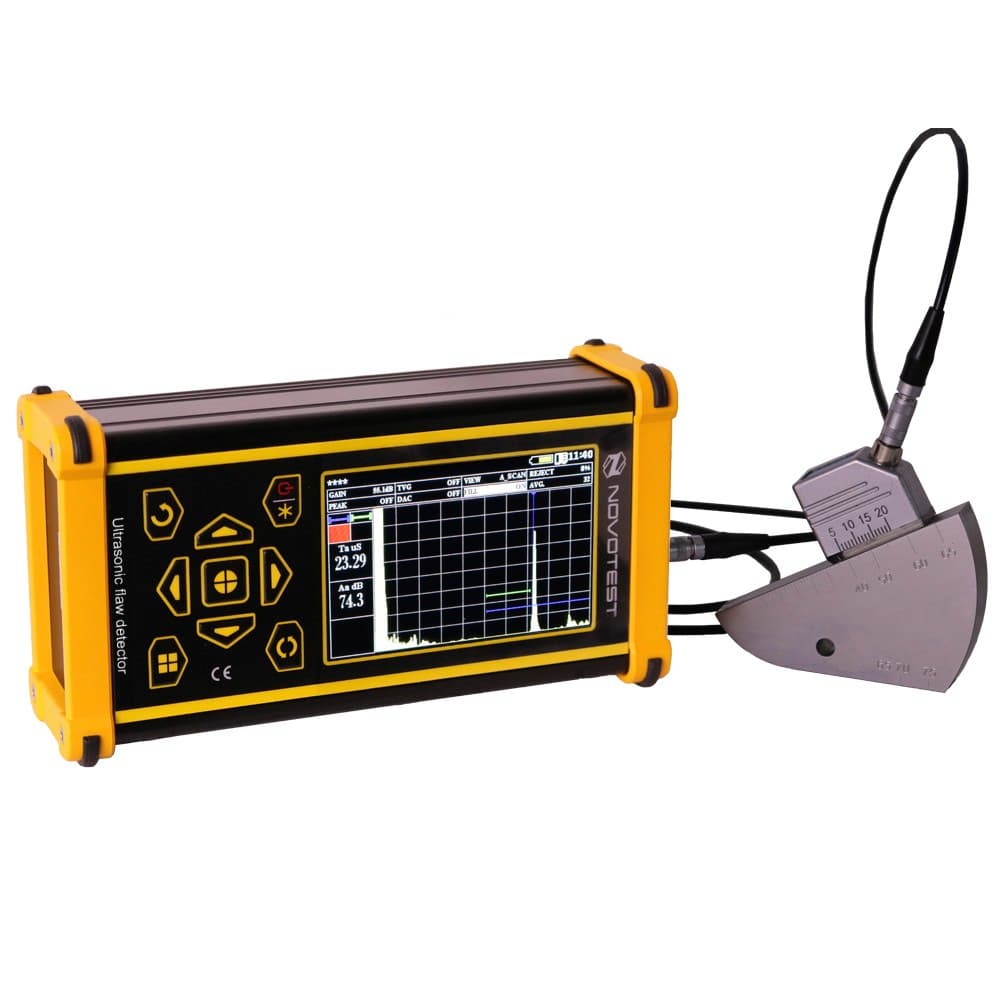

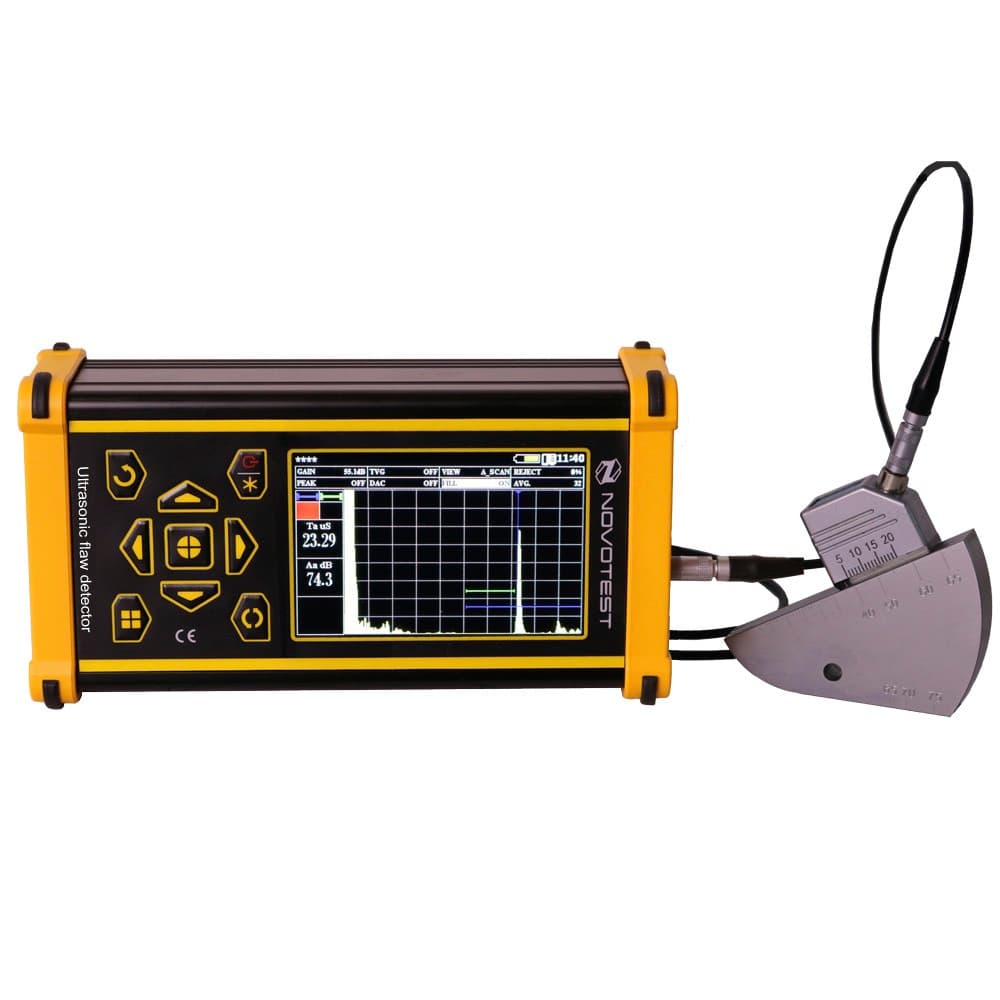

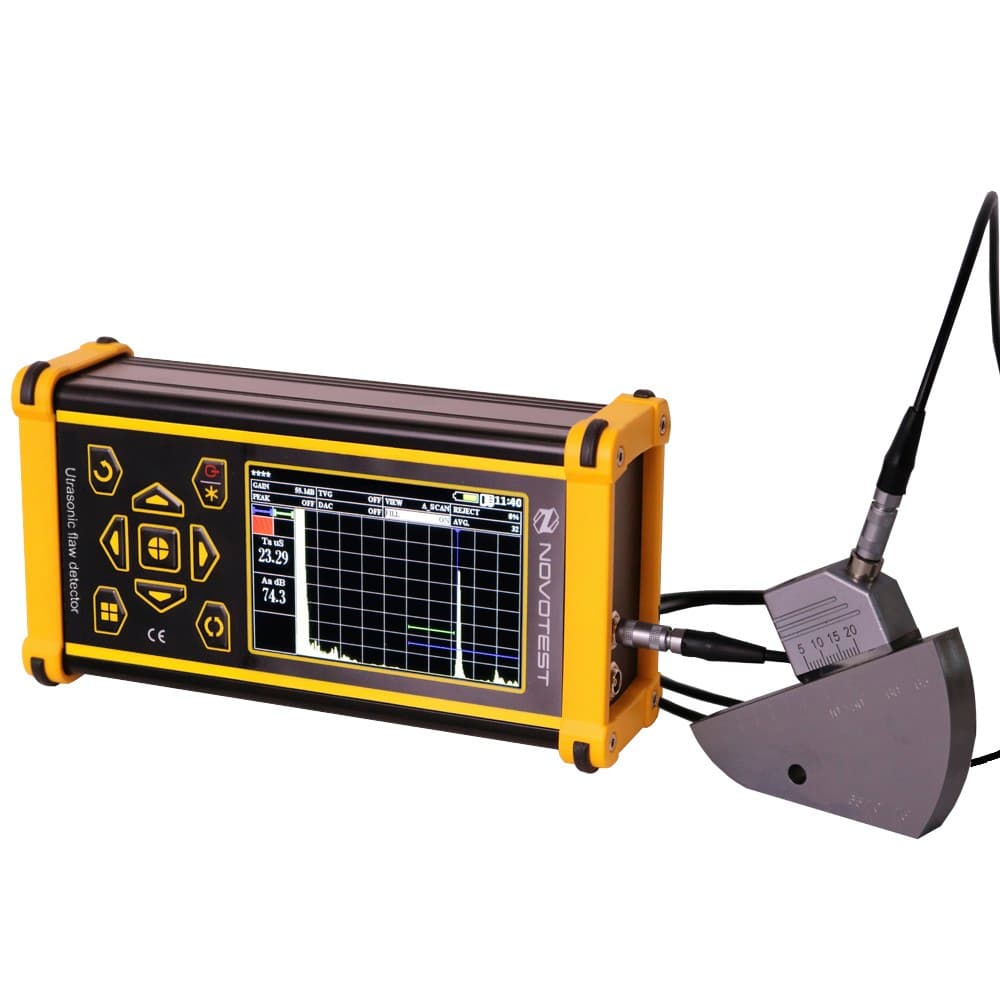

NOVOTEST UD2303 Ultrasonic Flaw Detector

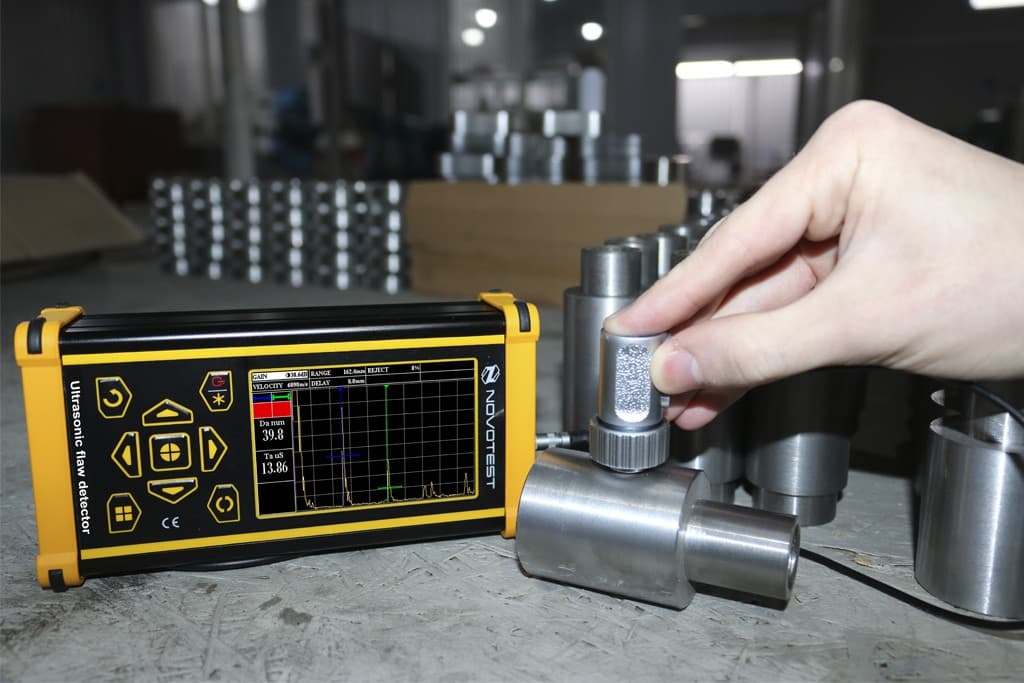

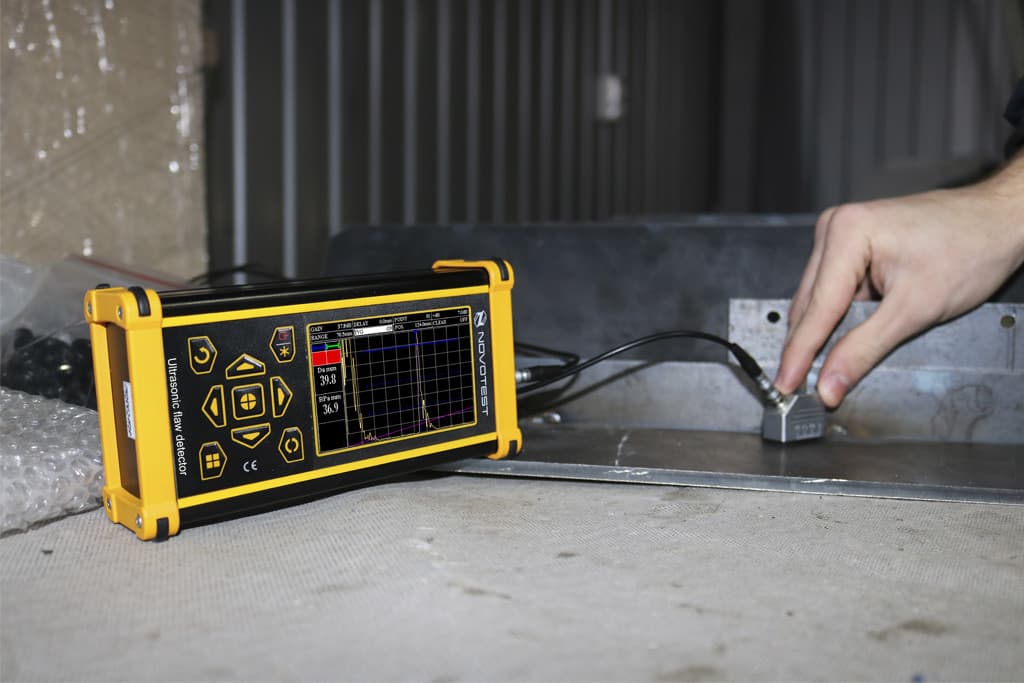

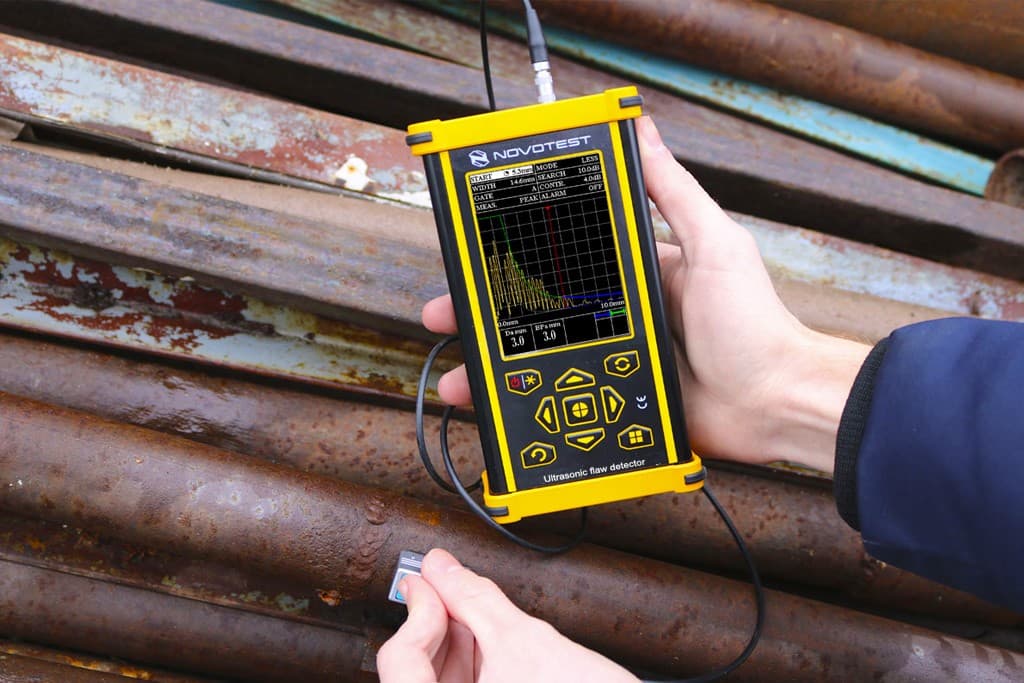

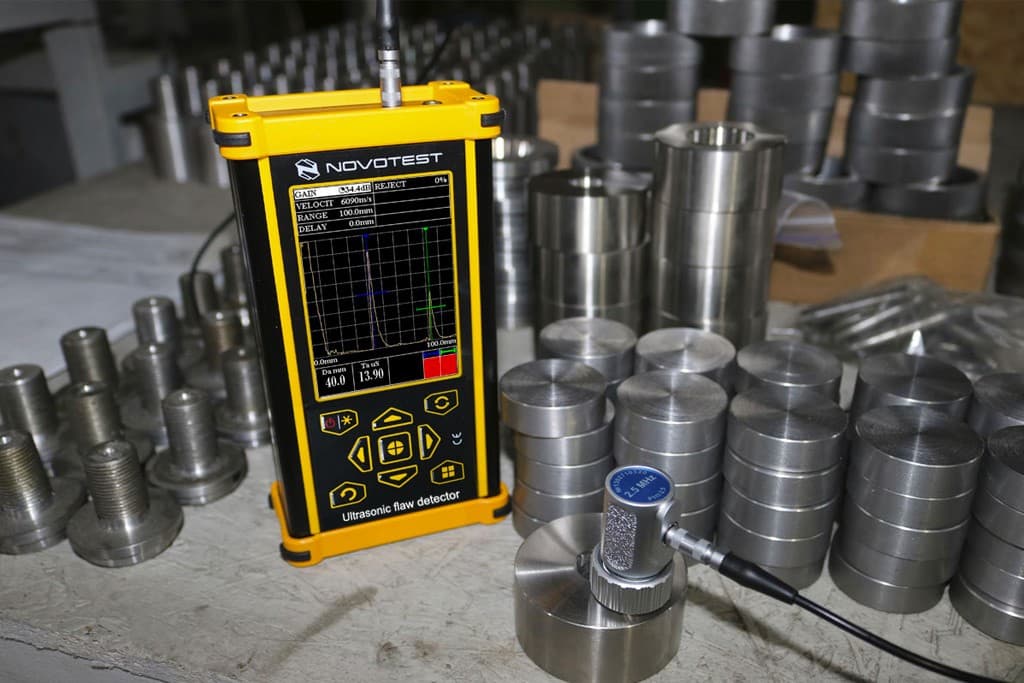

The NOVOTEST UD2303 is a compact, lightweight ultrasonic flaw detector for checking the quality of metals, plastics, glass and composite materials. It is used to find hidden corrosion, cracks, internal defects and inconsistencies in a material, to measure thickness and to inspect welded seams, and it suits both production and incoming inspection.
A 200 MHz sampling frequency and a fast averaging algorithm give accurate measurements and a stable signal. The detector offers ASD (two-zone automatic signal detection with flexible alarms), TVG to even out signals from defects at different depths, DAC curves for rejecting products, and a DGS mode that builds its curve automatically. A dedicated AWS mode inspects welded joints to the American Welding Society D1.1 standard.
At about 500 g it is easy to carry on site. Calibration is automatic through a clear menu, the screen can be rotated for left- or right-handed use, readings can be shown in mm or inches, and measurements are stored in memory and can be transferred to a PC. The built-in Li-ion battery runs for 8 hours or more.
Key features
- Tests metals, plastics, glass and composites; finds corrosion, cracks and internal defects
- ASD, TVG, DAC and DGS modes, plus an AWS D1.1 weld inspection mode
- 200 MHz sampling frequency with fast averaging for a stable signal
- Scan range 0.48–1500 mm in steel, 126 dB gain range
- Automatic calibration, mm and inch readings, rotating screen
- Measurement storage with PC transfer
- About 500 g, with 8+ hours of battery life
Specifications
| Specification | Value |
|---|---|
| Operating frequency range | 1–10.0 MHz |
| Scanning duration range | 6–1000 µs |
| Velocity range | 1000–9999 m/s |
| Scan range | 8–250 µs, or 0.48–1500 mm in steel (longer by special order) |
| Time interval measurement error | ±0.025 µs max |
| Amplitude measurement error (0–110 dB) | ±0.5 dB max |
| Testing gain range | 126 dB |
| Signal averaging | 1–128 starts |
| TVG sensitivity adjustment | 1–40 dB, 16 control points |
| Excitation pulse duration | 12.5–0.5 µs |
| Probe delay setting | 0–15 µs |
| Sweep delay | 0–1000 µs |
| Signal detection | Positive half-wave, radio mode; two-zone ASD |
| Dimensions | 165 × 90 × 50 mm |
| Weight | 500 g max |
| Power | Built-in Li-ion battery, 8 hours minimum continuous (20 hours by special order) |
| Operating temperature | -20 to +40°C |
| Humidity | 98% max at 35°C |
| Menu languages | English, Russian |

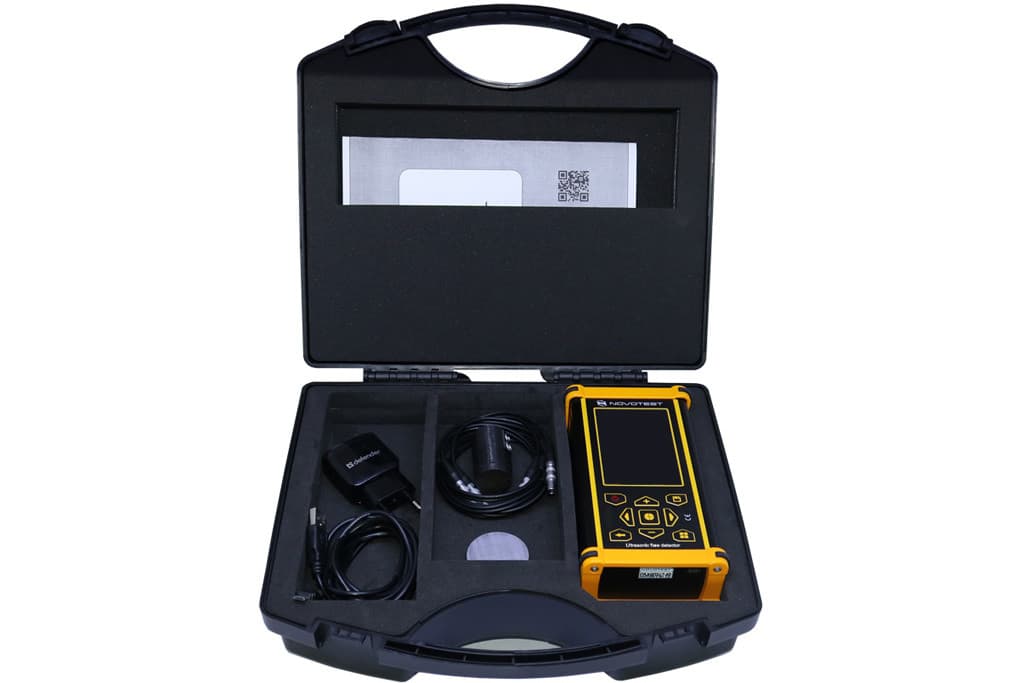

What's in the box
| Item | Qty |
|---|---|
| Ultrasonic flaw detector UD2303 | 1 |
| UT probe | 2 |
| Lemo-Lemo cable | 1 |
| Charger | 1 |
| USB PC connection cable | 1 |
| PC software (downloadable) | 1 |
| Operating manual | 1 |
| Carrying case | 1 |
Extra probes and cables, standard or custom calibration blocks, couplant and an ISO 17025 calibration certificate are also available — tell us what you need in the notes.
