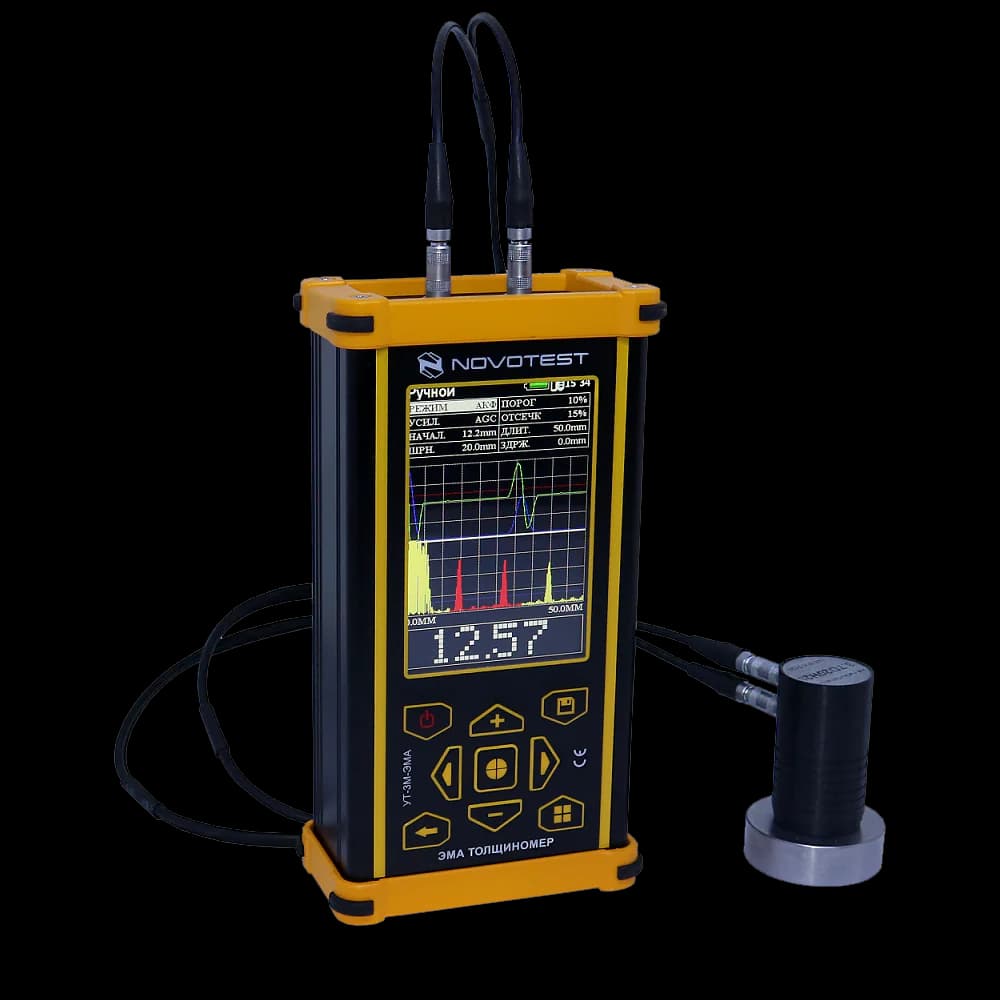

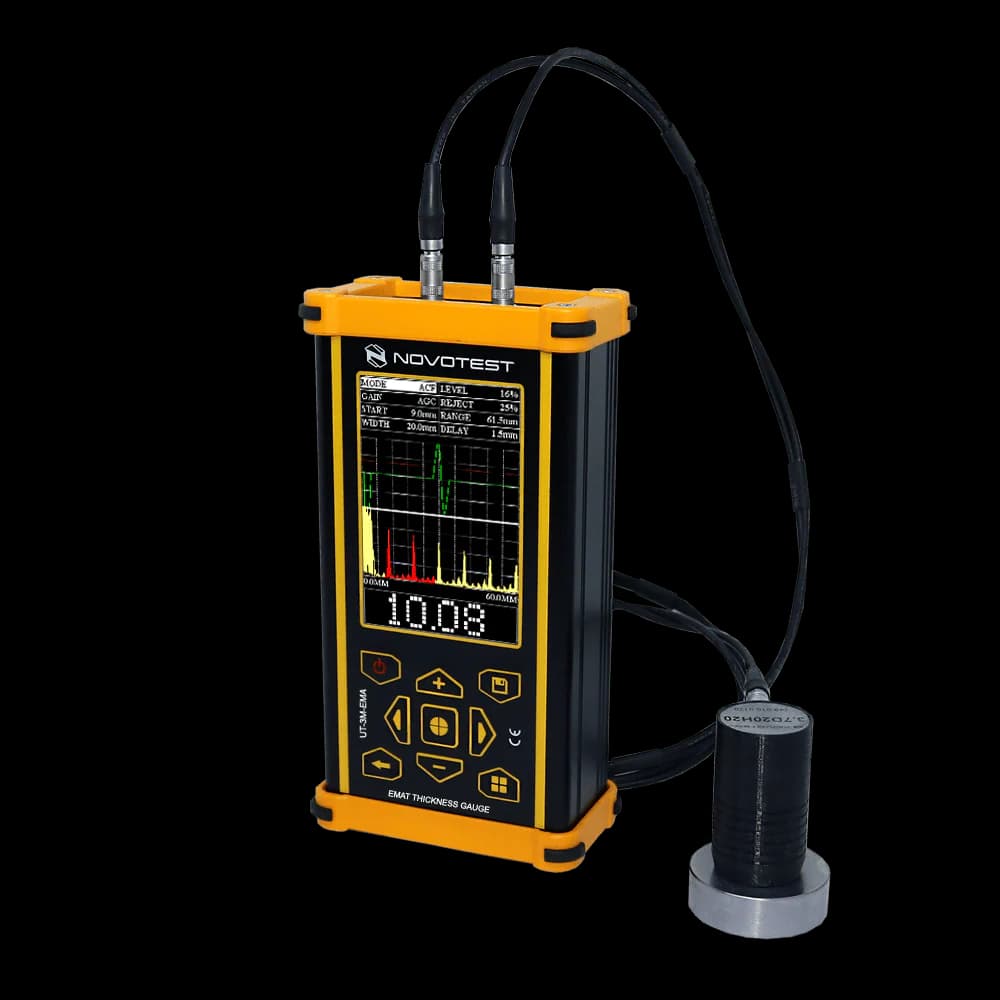

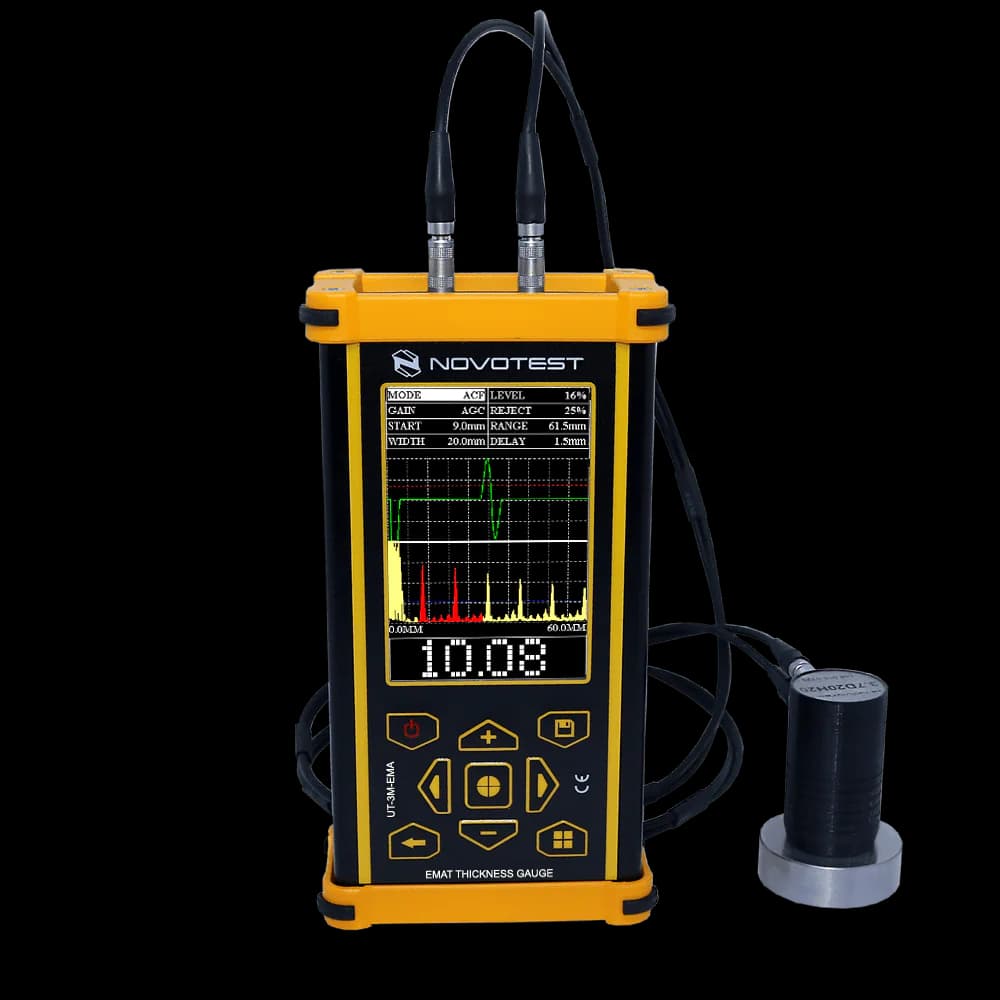

NOVOTEST UT-3M-EMA EMAT Thickness Gauge

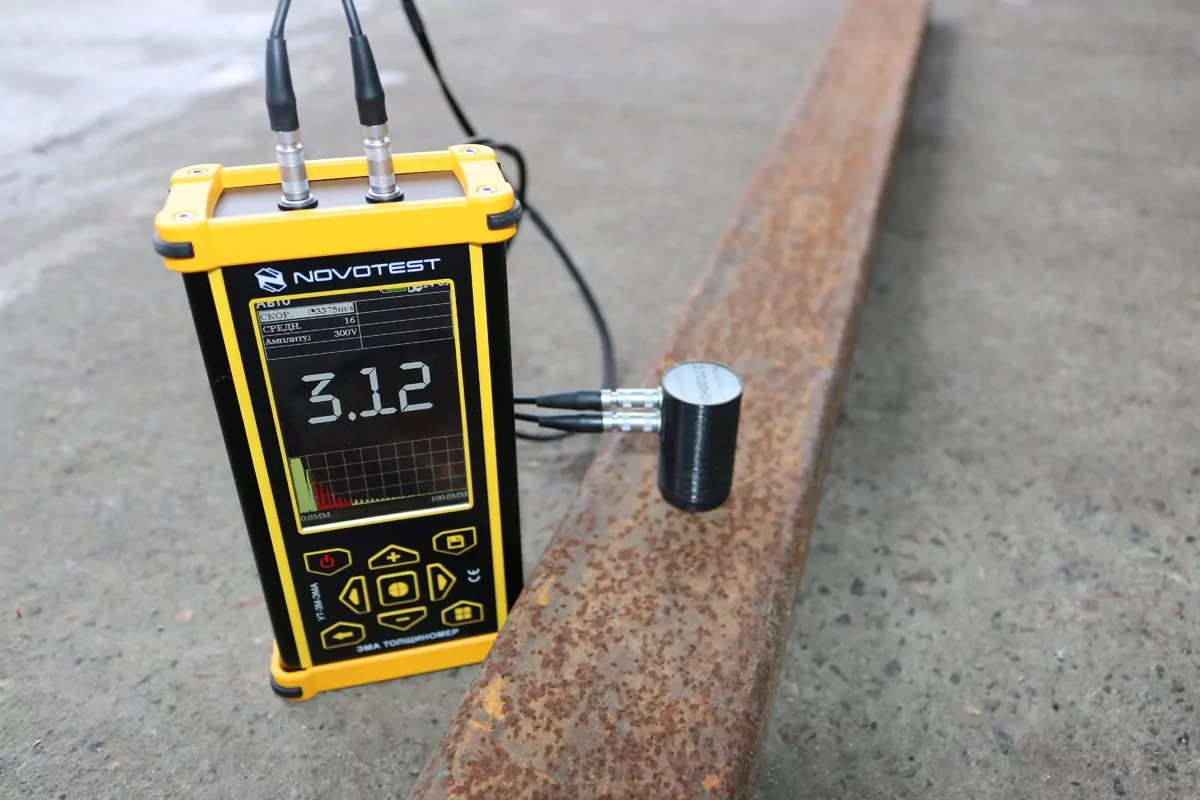

The NOVOTEST UT-3M-EMA measures metal thickness using electromagnetic-acoustic (EMA) technology, which removes several limits of conventional ultrasonic gauging. Because the ultrasound is generated directly in the material, no couplant is needed, and measurements can be made through a coating or an air gap of up to 6 mm.
This means thickness can be measured through paint, oxidation or oil without preparing the surface, on both ferromagnetic and paramagnetic materials, with less material waste and labour. The probes can be used on surfaces heated to as much as 600°C, which makes the gauge the best, and in some cases the only, practical solution for hot components. Wall thickness from 0.5 mm to over 200 mm can be measured, depending on the probe.
The gauge analyses the signals automatically, selects the measurement method and adjusts its parameters, and offers A-scan, B-scan, Peak-Peak, Front and Echo displays. The electronics are in a lightweight metal case (IP65 version available) with a lithium-ion battery that runs for over 8 hours.
Key features
- No couplant required; works through coatings or an air gap up to 6 mm
- Probes for surfaces up to 600°C (high-temperature probe)
- Measures ferromagnetic and paramagnetic metals, no surface preparation
- Measuring range 0.6–300 mm in steel depending on probe and object
- Automatic analysis and method selection; A-scan, B-scan and control modes
- ACF, Echo, Echo-Echo, Peak-Peak and Front measurement methods
- 3.5-inch display; 8+ hours battery life; lightweight metal case
Probe
Specifications
| Specification | Value |
|---|---|
| Measuring range | 0.6–300.0 mm (steel, depending on probe and object) |
| Coating / air gap | Up to 6 mm |
| Probe temperature | Standard: -20 to +50°C; high-temperature: -20 to +250°C (up to 500–600°C with cycling) |
| Resolution | 0.01 mm |
| Measurement units | mm, inch, µs |
| Ultrasonic wave type | Transverse |
| Manual gain range | 30–100 dB |
| Velocity adjustment | 1000–9999 m/s |
| Signal averaging | 1–128 |
| Operating modes | A-scan, B-scan, control |
| Measurement methods | ACF, Echo, Echo-Echo, Peak-Peak, Front |
| Display | 3.5 inch, 320×480 pixels |
| Electronic unit | 165 × 90 × 50 mm, 0.5 kg max |

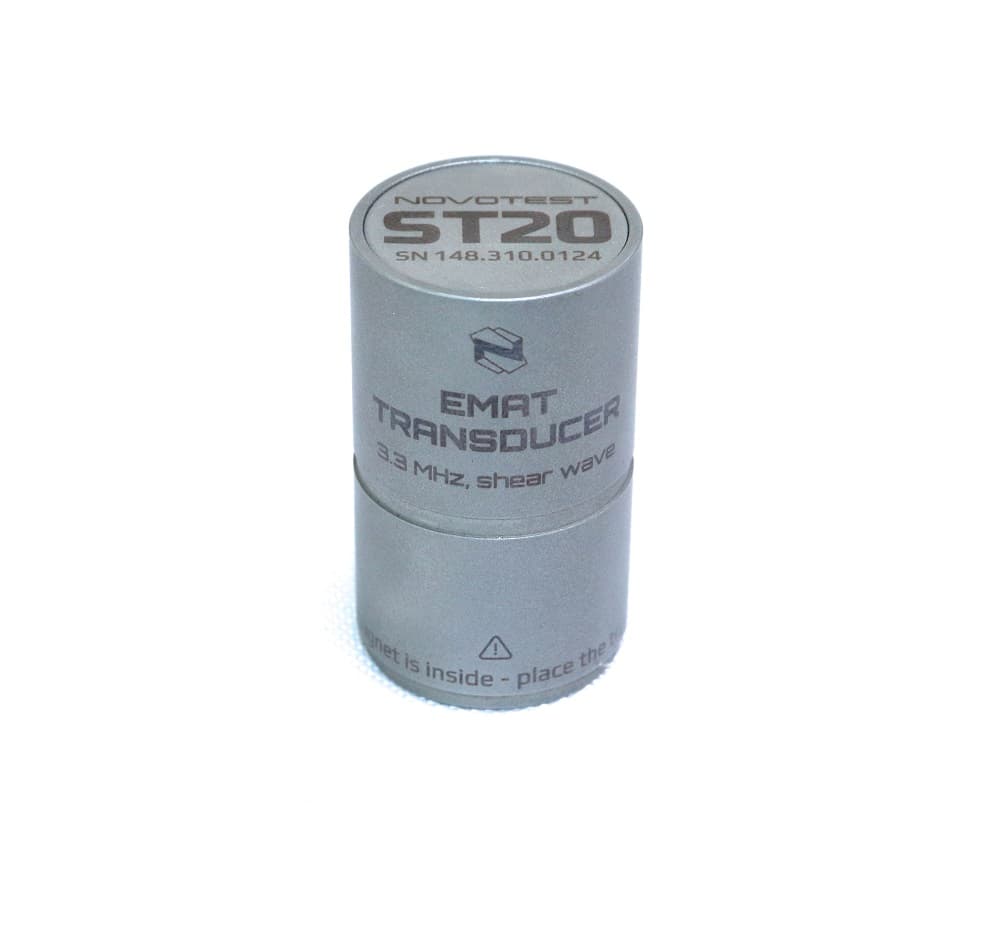

| EMAT ST-20 probe | 27 × 45 mm (diameter × height) |
| Power | Built-in Li-ion battery, 8+ hours continuous |
| Operating temperature (unit) | -20 to +50°C |
| Standards | ASTM E797, ISO 16809:2017, EN 14127, EN 15317, EN 12668-1 |
What's in the box
| Item | Qty |
|---|---|
| Electronic unit | 1 |
| Probe | 1 |
| Reference sample | 1 |
| Cable 2Lemo-2Lemo | 1 |
| USB cable | 1 |
| Charger | 1 |
| Operating manual | 1 |
| Case | 1 |
Step wedge and reference thickness calibration blocks (steel, stainless steel and aluminium), the V8-DM magnetic wall crawler robot, CE certificate and extended warranty are also available — tell us what you need in the notes.
