NOVOTEST UD3701 Ultrasonic Flaw Detector

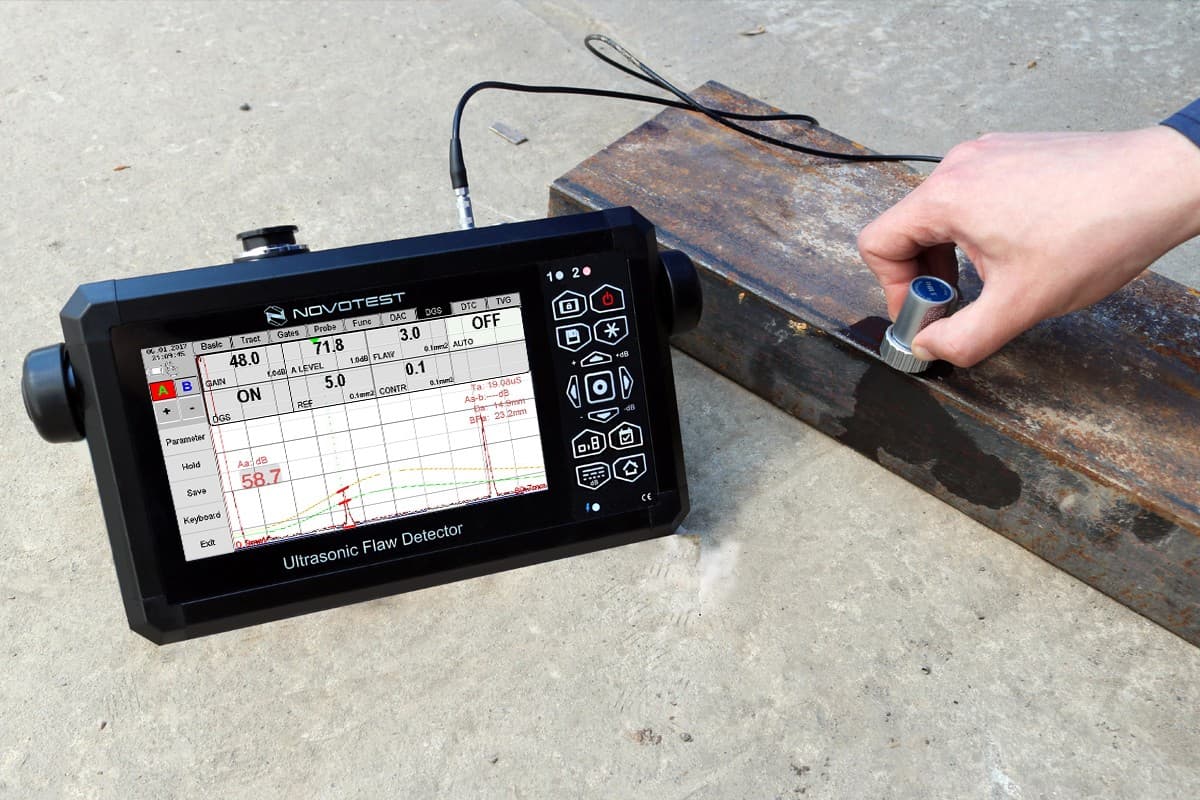

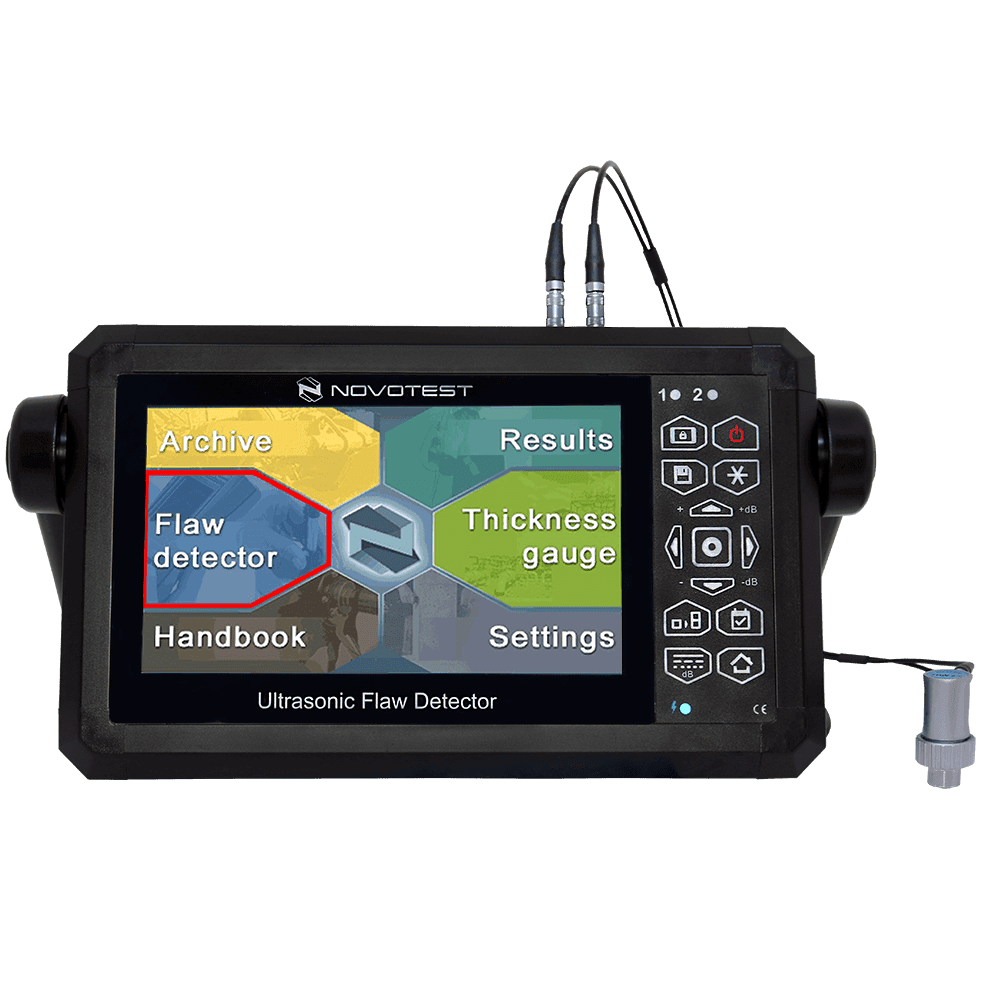

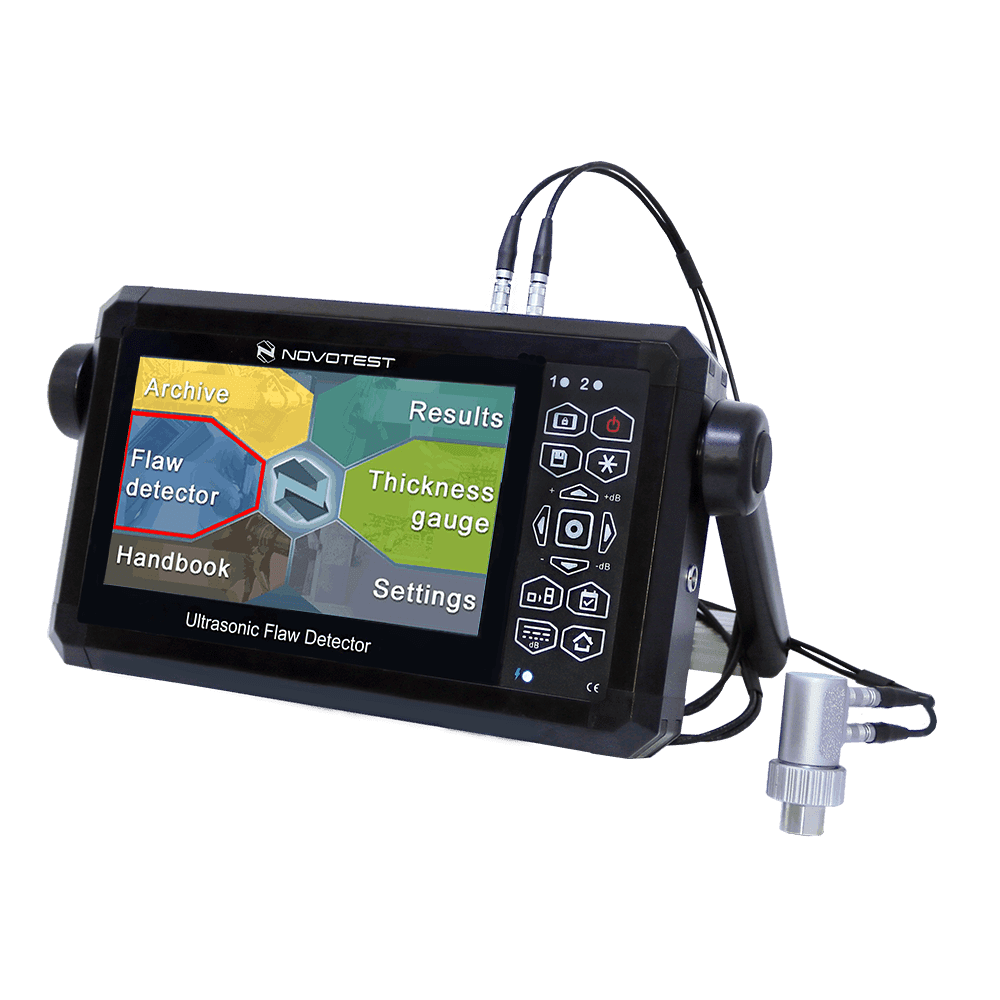

The NOVOTEST UD3701 is the top version of the NOVOTEST ultrasonic flaw detector range, built around a large, bright multi-touch display for use in the field. The 800×480 TFT screen stays clear in both dark and bright surroundings, and you can switch between dark and light colour schemes to suit the environment.
You can work either on the touchscreen or from the keyboard. Parameter blocks on screen can be moved around, an auto-zoom electronic magnifier and a fill function make signals easier to read, and envelope mode captures the maximum signal. Previously stored measurements can be replayed in a simulation, and results can be moved to a PC through the supplied software.
For evaluating indications, the UD3701 offers DAC curves with up to 16 points, TVG, and a DGS mode that sizes defects as equivalent reflectors automatically. Two independent gates give audible and visual alerts, and the probe delay can be calculated automatically. It is built for inspection work in the field.
Key features
- Large multi-touch TFT display, 800×480 pixels, with dark and light colour schemes
- Touchscreen and keyboard control
- Envelope mode, auto-zoom electronic magnifier and fill function
- DAC with up to 16 points, TVG and DGS (automatic equivalent reflector sizing)
- Two independent gates with audible and visual alarms
- Automatic probe delay calculation
- Simulation from stored measurements and movable parameter blocks
- PC software with measurement archive transfer

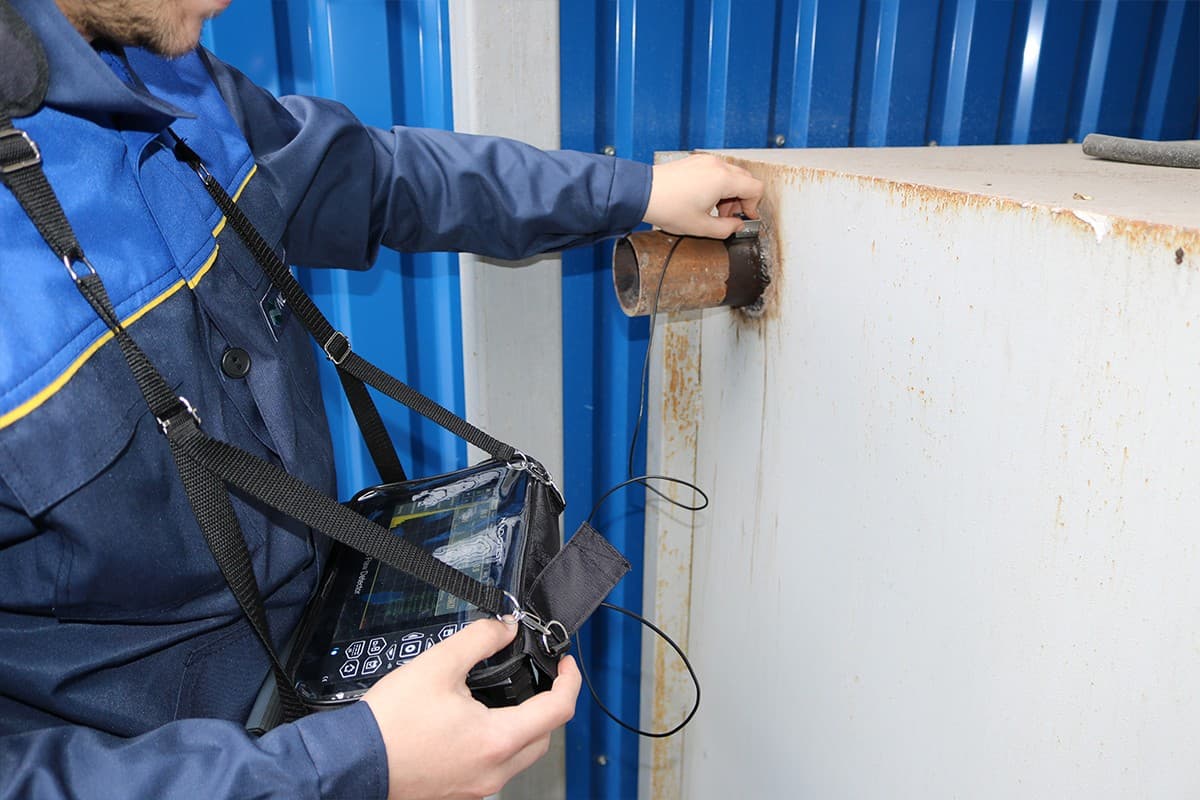

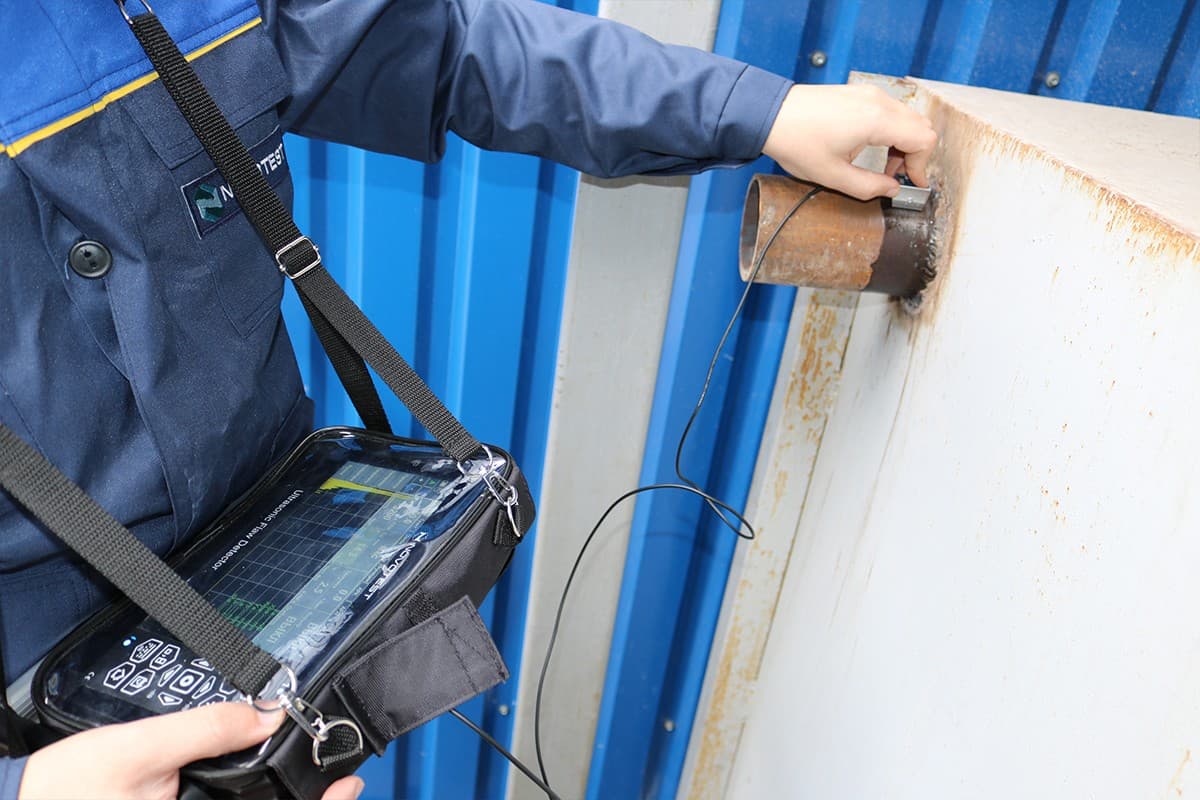

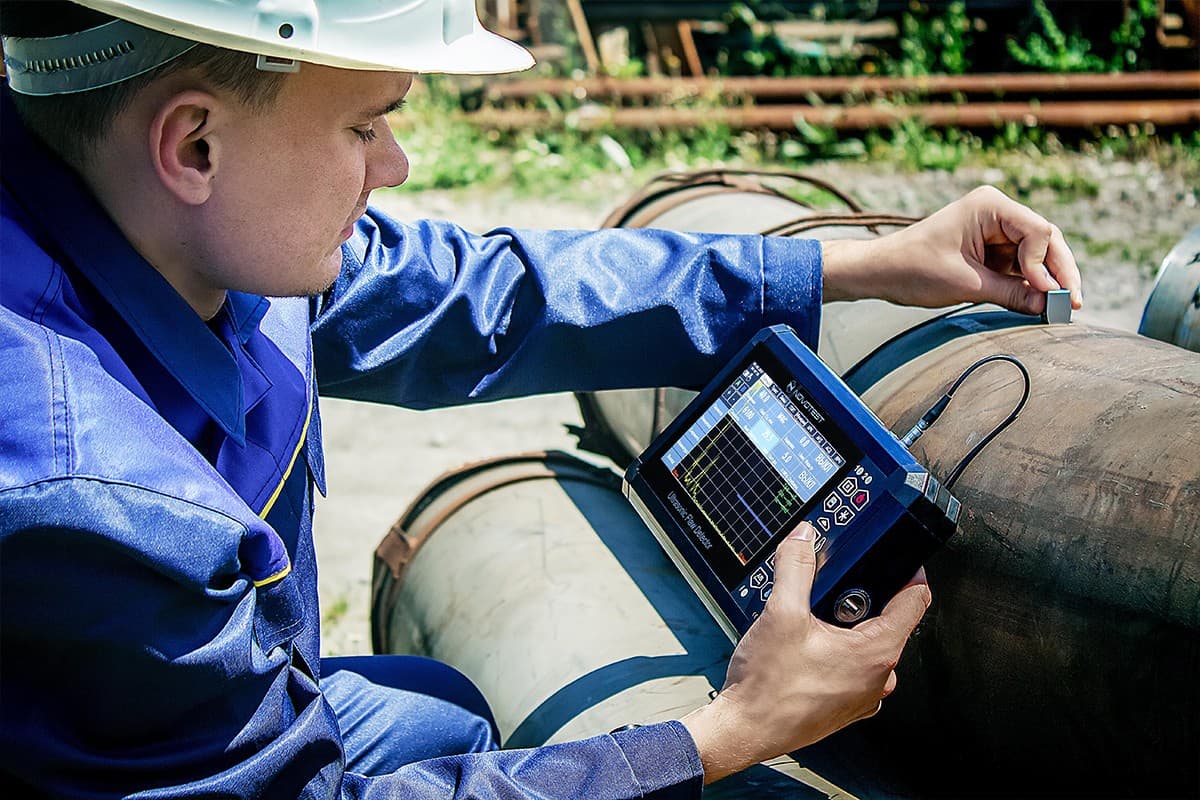

- Designed for use in the field
Specifications
| Specification | Value |
|---|---|
| Operating frequency range | 1–10.0 MHz |
| Scanning duration range | 6–1000 µs |
| Velocity range | 1000–9999 m/s |
| Time interval measurement error | ±0.025 µs max |
| Amplitude measurement error (0–110 dB) | ±0.5 dB max |
| Testing gain range | 125 dB |
| Signal averaging | 1–16 starts |
| TVG sensitivity variation range | 40 dB |
| TVG control points | 16 |
| Excitation pulse duration | 0.0–0.5 µs |
| Input signal deviation (10–100% screen) | 1 dB max |
| Probe prism delay setting | 0–15 µs |
| PRF | 10–100 Hz (auto-adjustable) |
| Signal detection | Positive half-wave, radio mode |
| Display | Multi-touch TFT, 800×480 pixels |
| Device dimensions | 140 × 210 × 55 mm |
| Device weight | 1.5 kg max |
| Package dimensions | 40 × 25 × 9 cm |
| Package weight | 4.5 kg max |
| Standards | EN 12668, ASTM E1324, EN 55011, EN 61000-6-2:2001, EN 61010-1:2014, EN 60529:2014, EN ISO 16810:2016 |

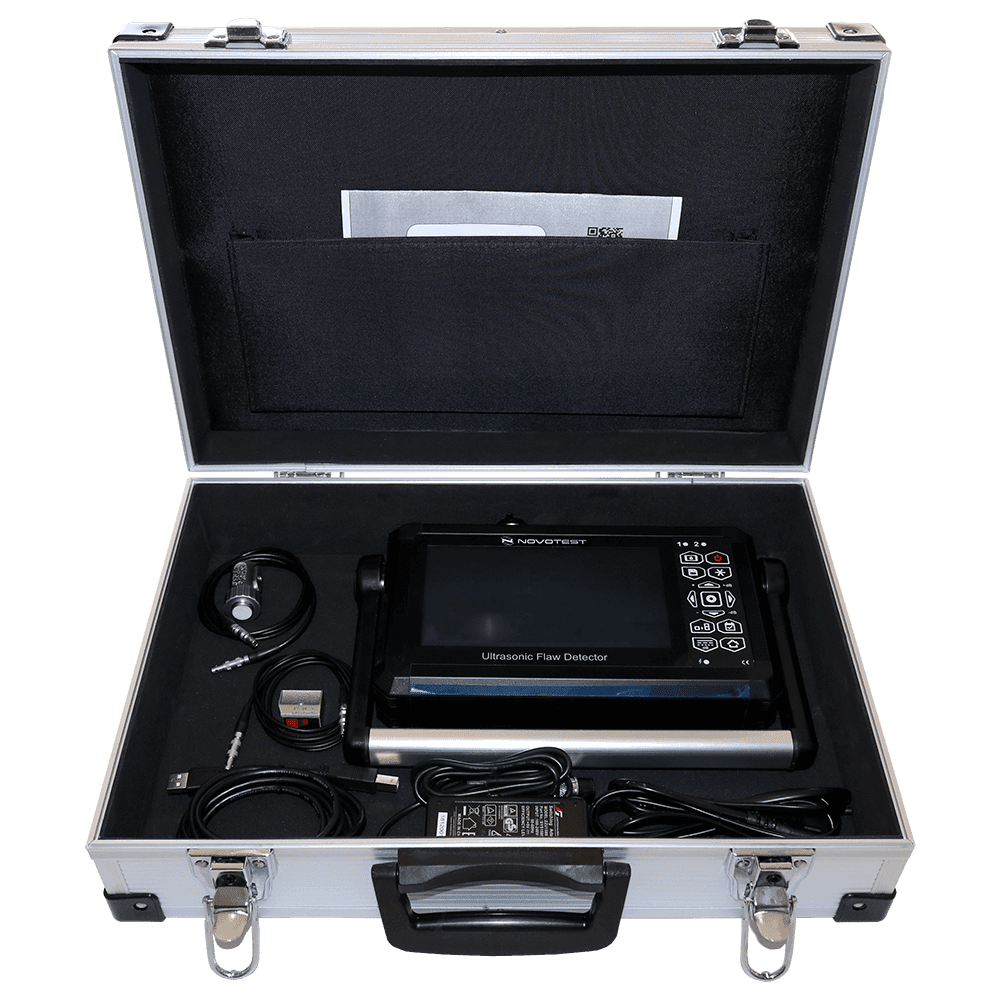

What's in the box
| Item | Qty |
|---|---|
| Ultrasonic flaw detector unit | 1 |
| UT probe | 2 |
| Lemo-Lemo cable | 1 |
| Charger | 1 |
| USB PC connection cable | 1 |
| Operating manual | 1 |
| Hard carry case | 1 |
The protective cover and neck strap shown in some photos are not included as standard — tell us in the notes if you'd like one.
